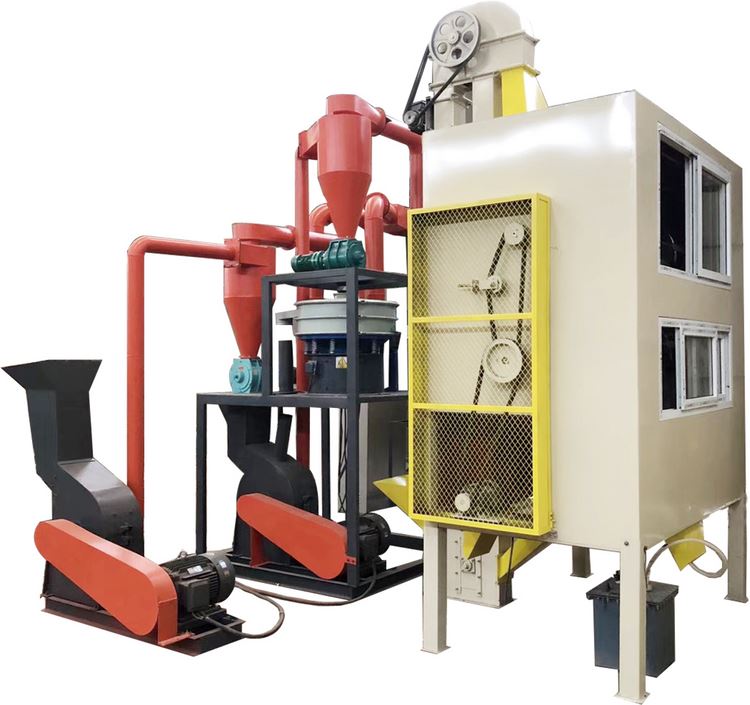

电路板回收分选设备 PCB Board Recycling Machine

概述 Product Introduction

电路板回收设备即回收处理废旧电路板，分离电路板中的金属和树脂粉的设备，也是我们常说的电子垃圾回收处理设备。可处理原料：各种废旧电路板、覆铜板、线路板、电脑版、电视机板、印刷线路板、各种废旧电器主板以及加工废料等。 处理流程：先用高温电子元件拆解机将电路板上的电子元件拆解下来，将电路板基板进行机械粉碎，达到金属和非金属脱离，然后通过气流和静电进行分选。我公司的电路板拆解机具有安全可靠，性能稳定，经久耐用等特点，保证完全拆解且不损坏电路板材质。

设备特点：

1）采用气流加静电双重分选工艺，使金属回收率达到99%以上；

2）采用负压上料与脉冲除尘系统，全封闭式除尘，净化工作环境；

3）所有流程均采用干式物理分离，不会对水，土，空气等环境资源造成任何污染；

4）PLC控制系统，自动化程度高，操作简单。

PCB board recycling machine is an e waste recycling machinery, which is specially designed for separating out the precious metals and resin fiber from the scrap PCB boards for recycle use. The whole process adopts dry type physical separation methods, include shredding, crushing, eddy-vibrating screen, air separation and electrostatic separation with vacuum feeding and pulse dust collection, no fire, no chemical, no secondary waste, total friendly to the environment. With the PLC control system, it could make the PCB recycling machine fully automatic with stable performance, easy to operate. And the PCB recycling machine is designed with integrated type compact structure which could save land occupy size and easy to install. Further with the on-the-spot installation, commissioning and operation training service, it would avoid your trouble on installation and operation. During PCB recycling process, PCB would be firstly shredded or crushed, then sieved by eddy-vibrating screen and separated through air separation and electrostatic separation, which could achieve the recovery rate to 99.9%. With the auxiliary equipment – PCB dismantling machine, it could firstly dismantle the electronic components from PCB boards before the separation process.

工作流程 Working Process

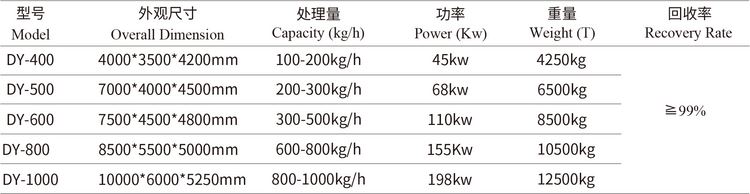

技术参数 Technical Parameter
