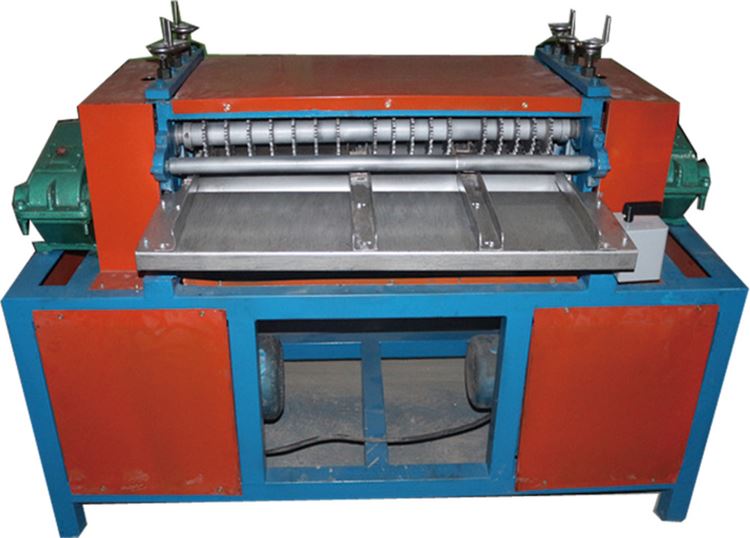

散热片剥管机 Stripping Type Radiator Recycling Machine

概述 Product Introduction

散热片剥管机适用于废旧空调散热器及空调散热器生产厂家的散热器残次品、报废汽车散热水箱铜管与铝箔的分离，同一台设备可处理单层和双层19mm、21mm、25mm三种不同铜管间距的铜铝散热片，超宽的散热片可使用配套锯切机进行切割预处理。散热片剥管机可将报废的铜铝空调散热器内部的铜管完整的剥离出来，铝箔也保持块状，铜管与铝箔分离速度快，功效高，操作简单，安全方面采用入料口设置光目控制，工作时人手伸过设定位置，机器运行停止。

Stripping type radiator recycling machine, also called as radiator separator, is a simple design but high efficient equipment for recycling waste air conditioner or car radiators by stripping the aluminum foil directly off copper tubes, thus to keep the shape of the copper tubes, and then get double recycling of both aluminum foil and copper tubes. This stripping type radiator recycling machine is a single-unit design with small land occupy size, easy to operate with safety control, once the worker or any part of the body reach to the setting position or distance to the feeding inlet, the radiator recycling machine would stop working automatically. One equipment could be used to process both single and double layer radiators with different sizes of 19mm, 21mm and 25mm. The super-wide radiators could be pre-cutted by an auxiliary equipment – radiator cutting machine.

辅助设备 Auxiliary Equipment

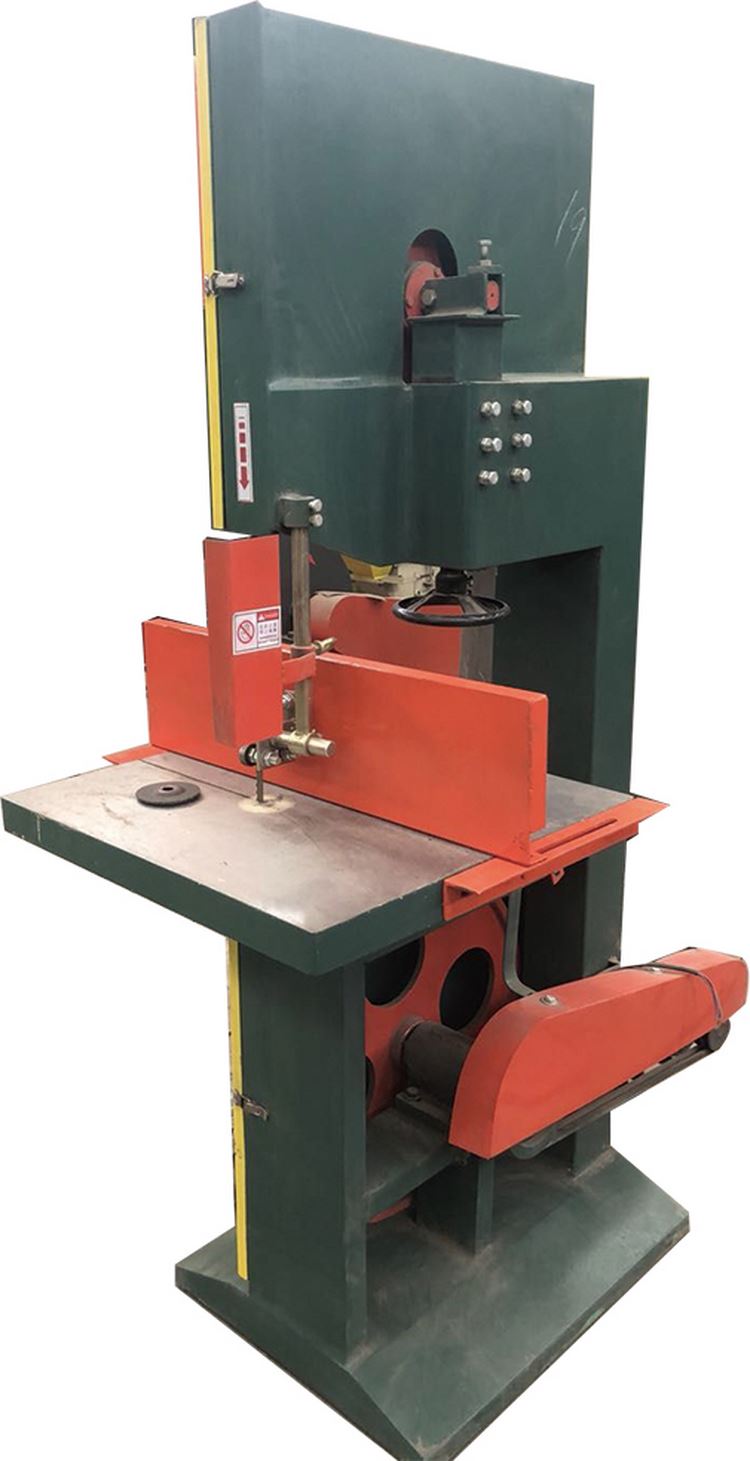

散热片切割机 Radiator Cutting Machine

概述 Product Introduction

散热片切割机主要用于散热片剥管机的辅助设备，针对散热片剥管机的预设进料尺寸，散热片切割机可以对超宽的散热片进行切割预处理。 Radiator cutting machine is an auxiliary equipment of the stripping type radiator recycling machine, mainly used to cut big pieces waste radiators to smaller size to be suitable processed by the stripping type radiator recycling machine.

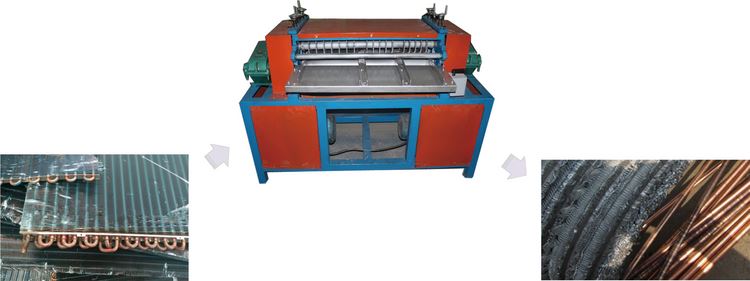

工作流程 Working Process

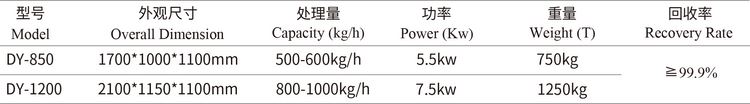

技术参数 Technical Parameter
